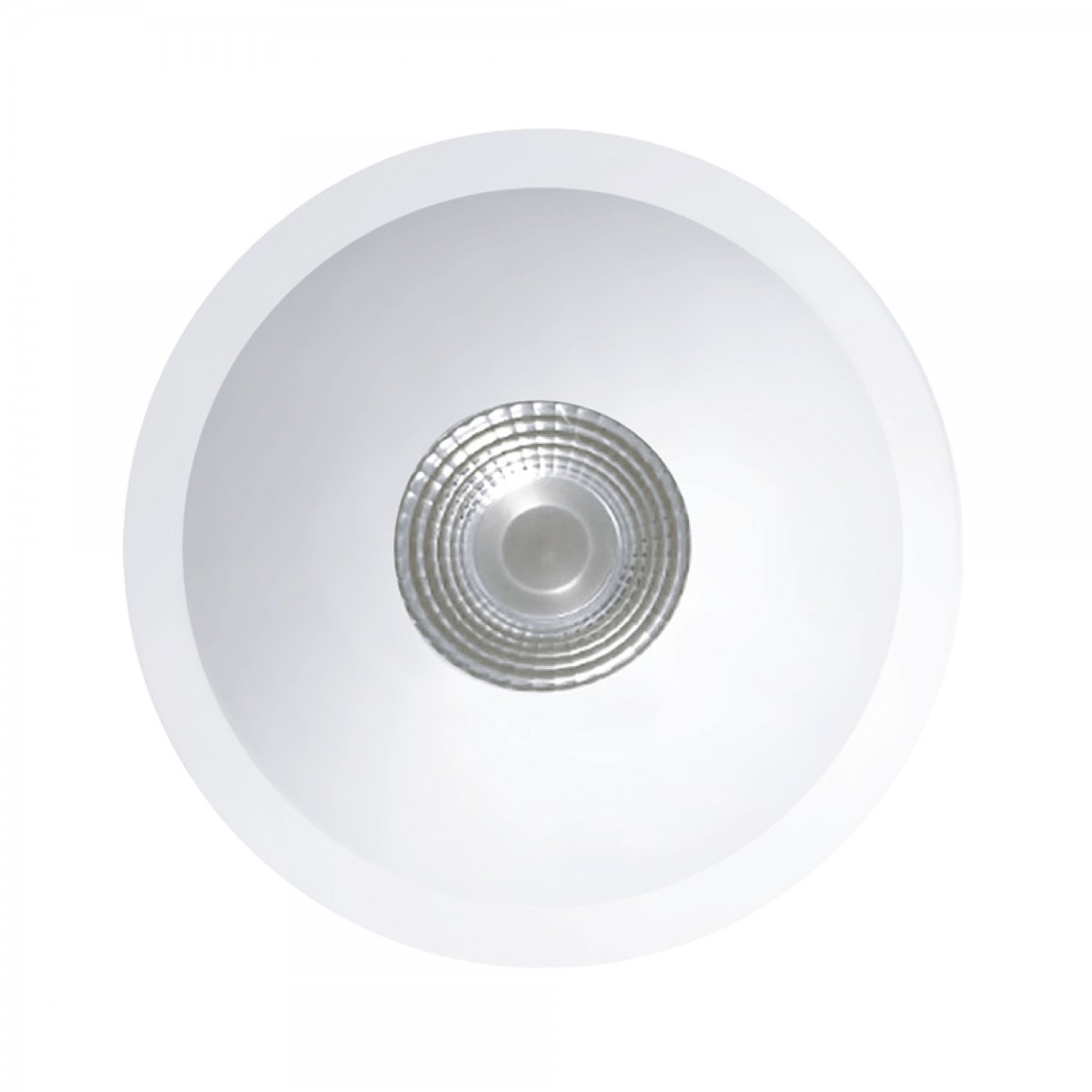

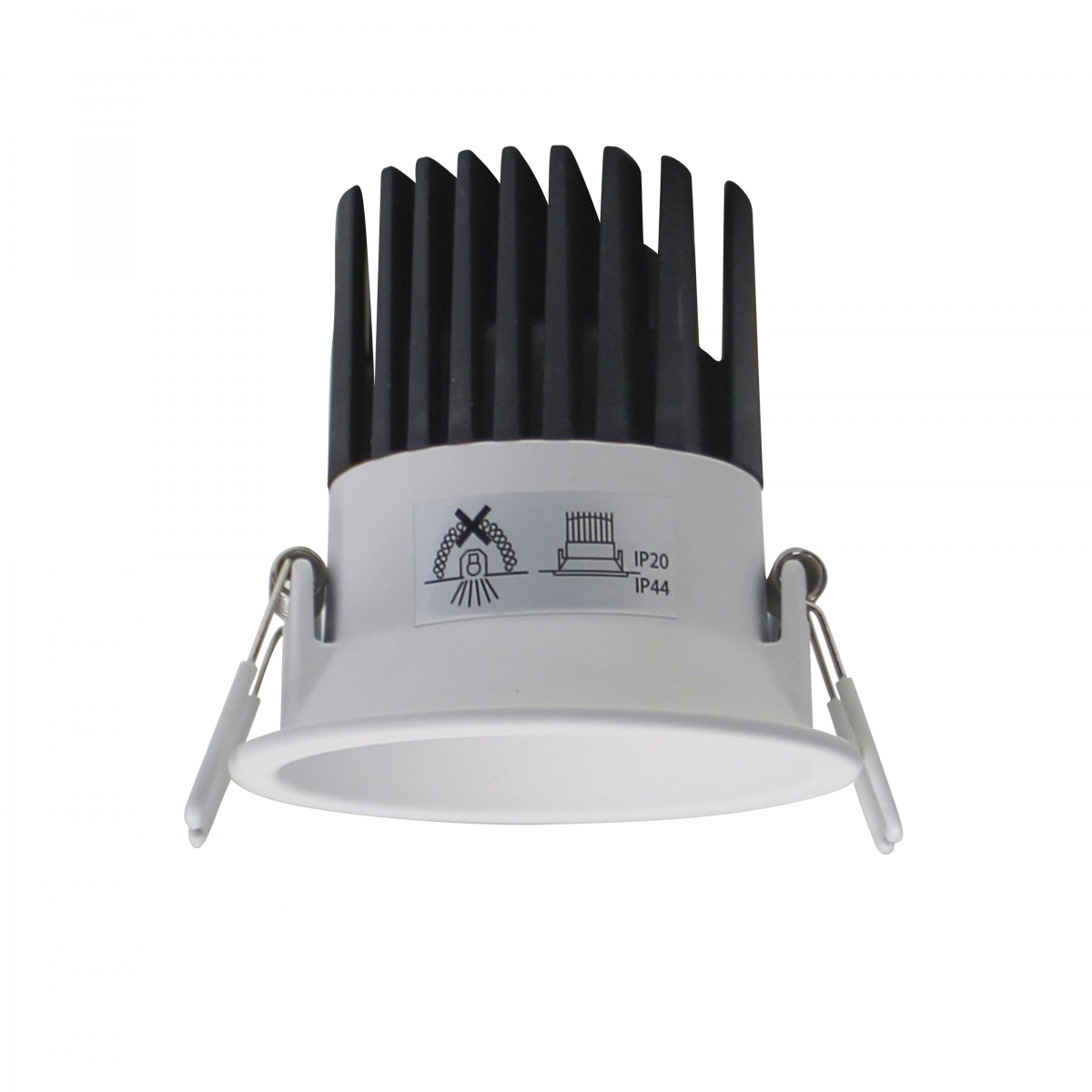

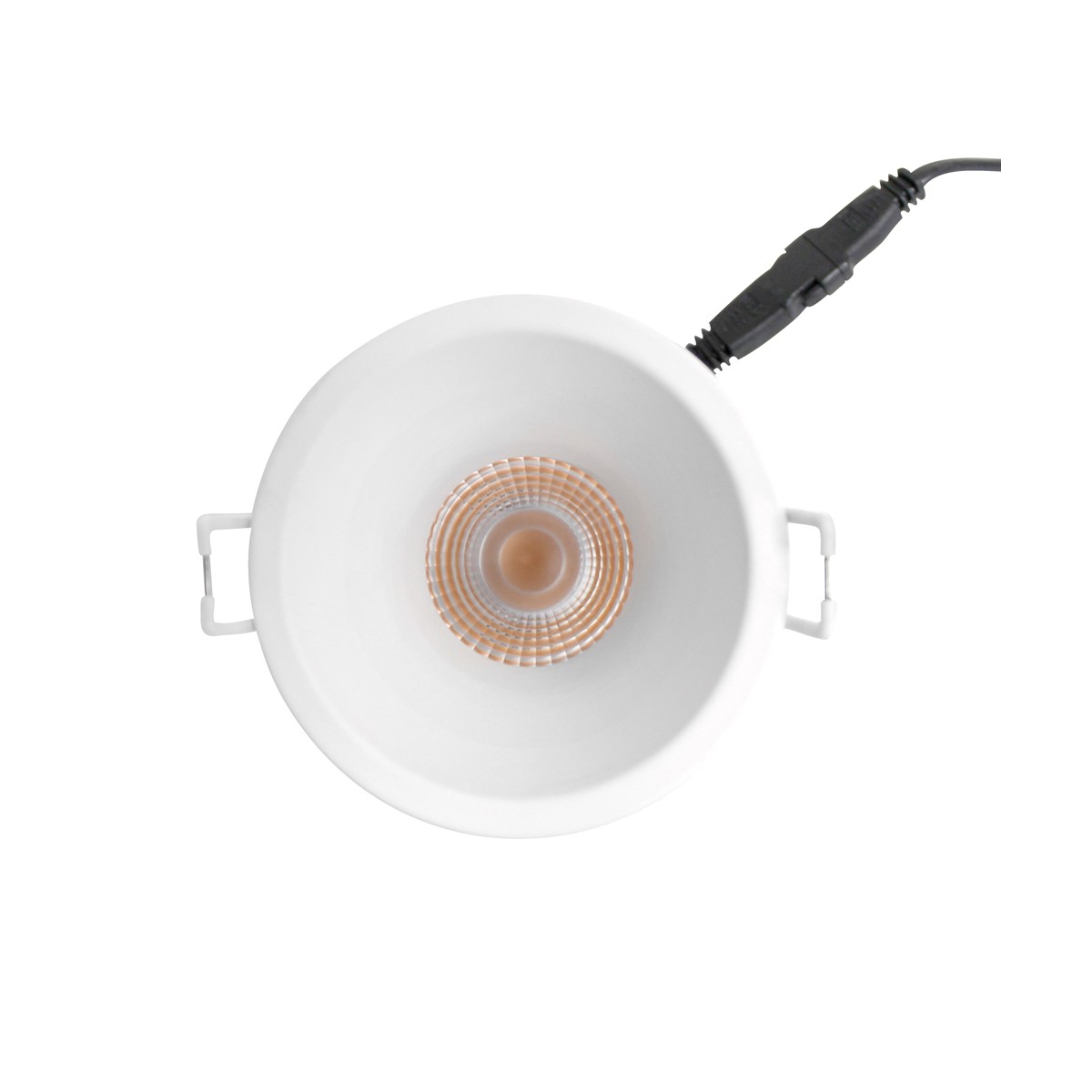

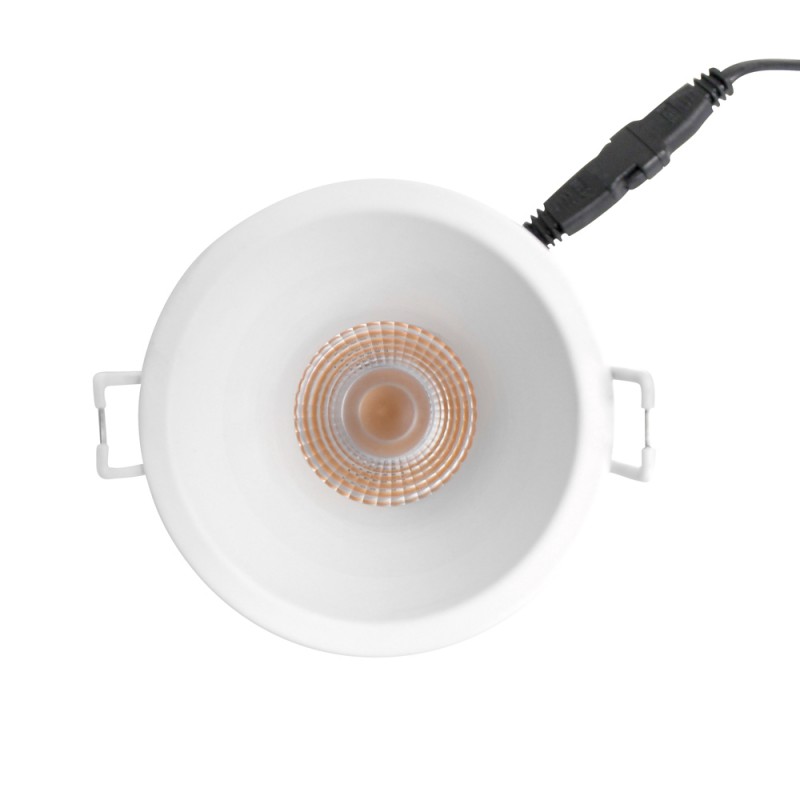

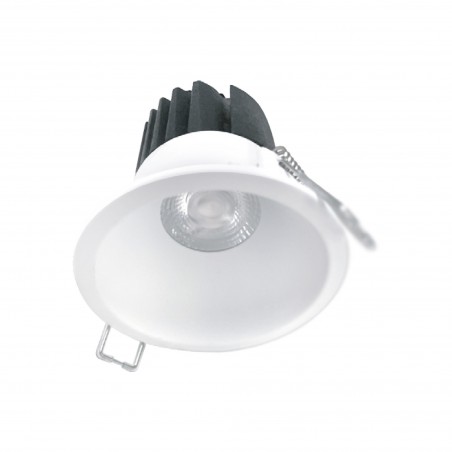

Abel Recessed Downlight LED 12W 3000K 1000 lm Round White IP44
Ref. 02-077-15-300
02-077-15-300
Data sheet
- Brand
- Angel Aparicio Spain

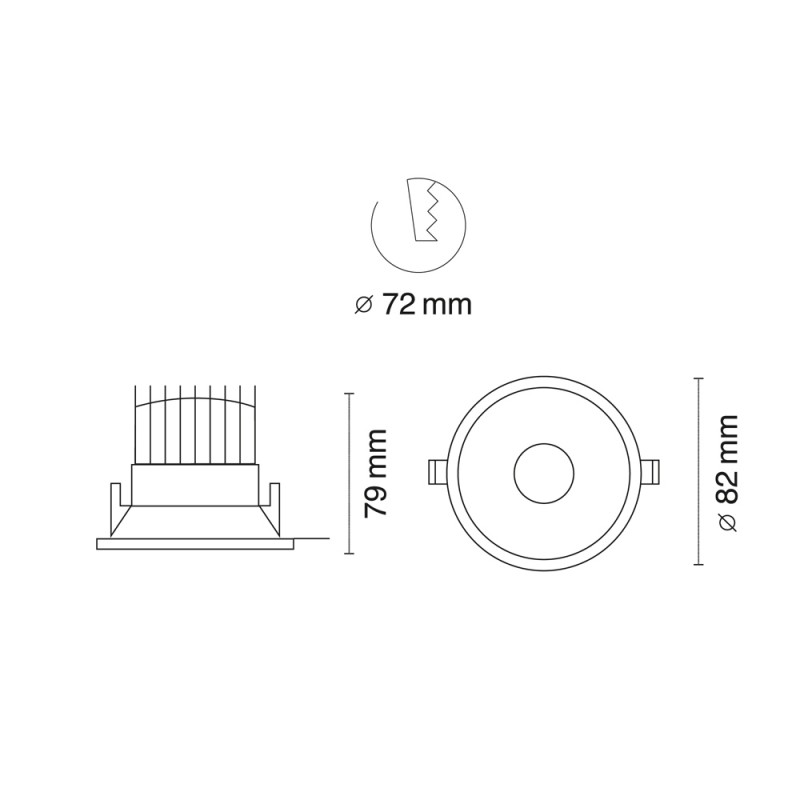

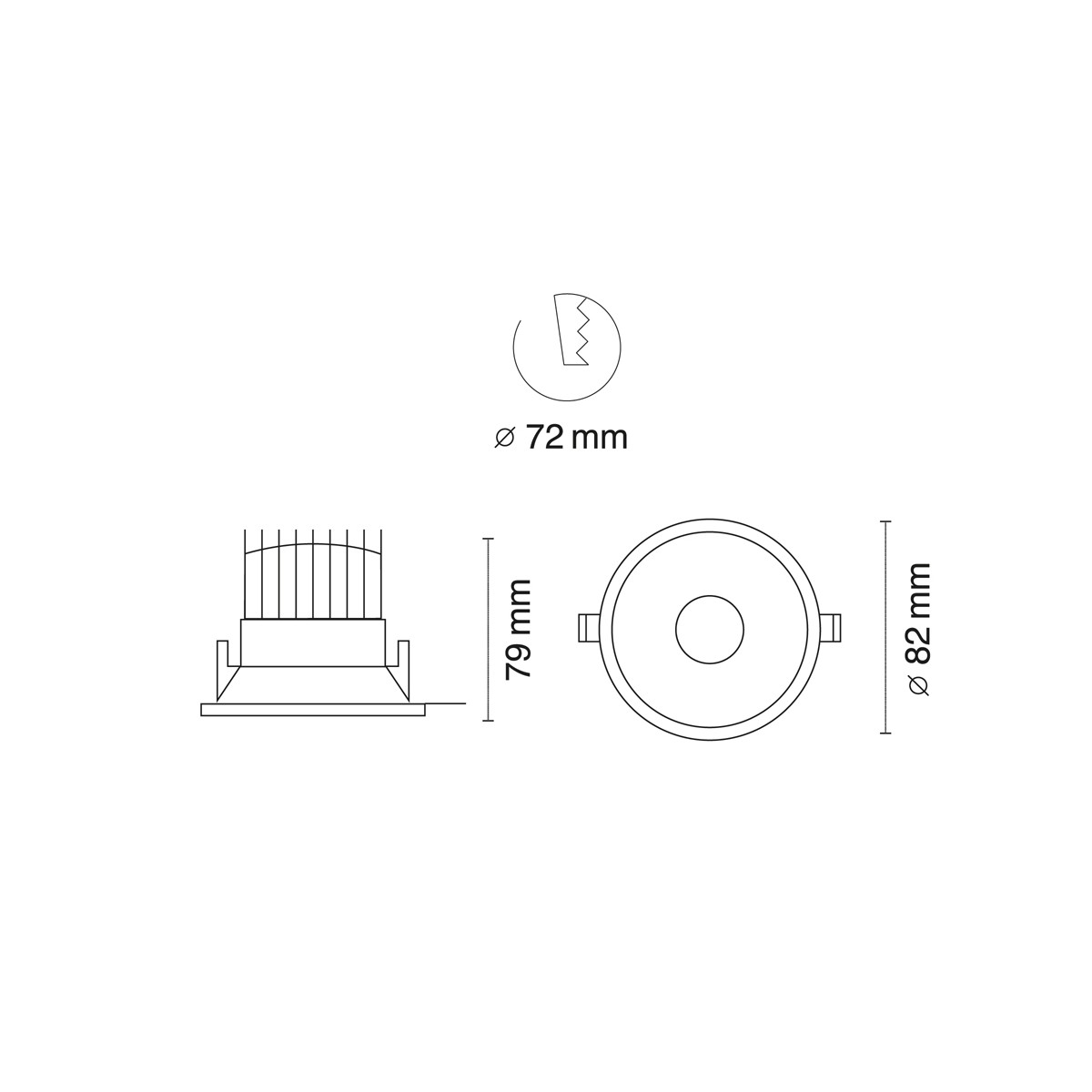

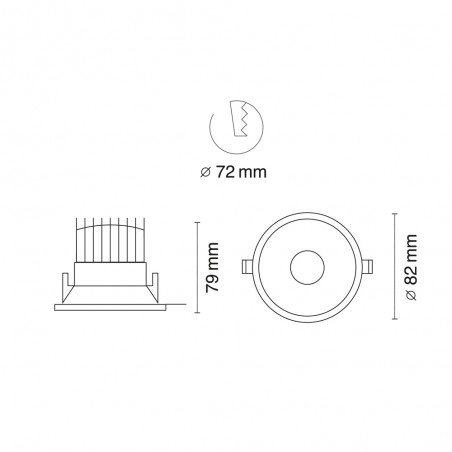

- Height (mm)
- 79
- Length (mm)
- 82
- Width (mm)
- 82
- Cut out (mm)
- 72
- Material
- Aluminium
- Finish
- White
- Diffuser Finish
- Transparent
- IP Rating
- 20
- LED type
- COB
- Power (W)
- 10
- Brightness (Lm)
- 1050
- Nominal Efficiency (lm/W)
- 80lm/W
- Light temperature (K)
- 3000 / 4000 / 6000
- Opening Angle
- 15º / 24º / 38º / 60º
- Chromatic reprodiction index (CRI)
- 80
- Dimmable
- Yes
- Type of Dimming
- TRIAC
- Lifetime (h)
- 30.000
- ON/OFF
- 15.000
- Input Voltage
- AC100-265
- Frequency (Hz)
- 50/60
- IEC protection
- Class II
- Power factor
- 0.5
- LED driver brand
- Angel Aparicio Spain
- Certificates
- CE, ROHS
- Driver approvals
- CE
- Guarantee
- 5 years both LED chip & LED driver
- Dimensions (mm)
- Ø50x65
- Working Current
- 300 mA
- LED DRIVER Ta / Tc (ºC)
- 50 ºC / 75 ºC
- Pcs / Master
- 30

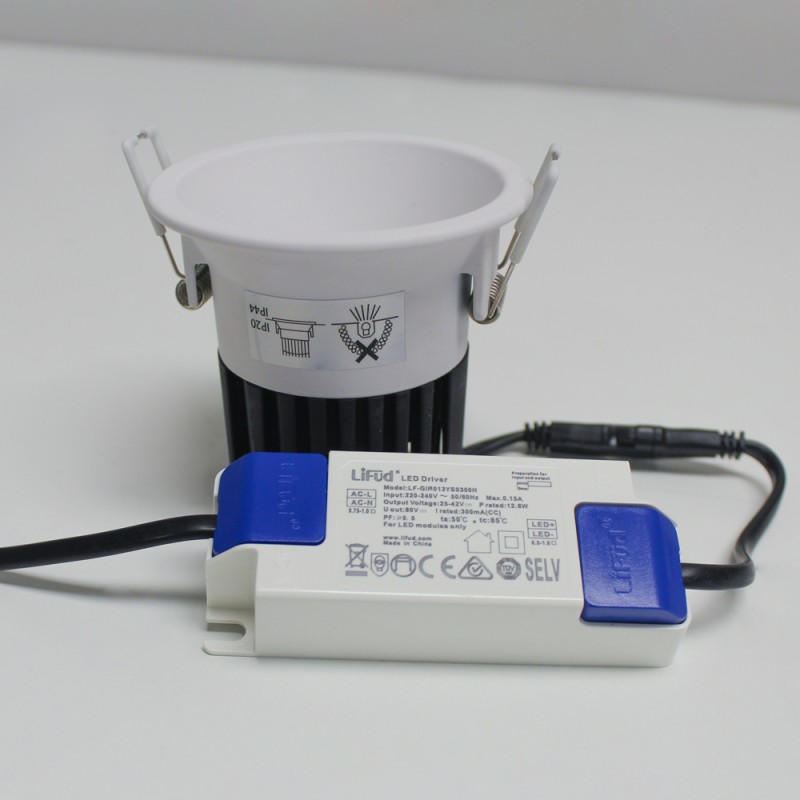

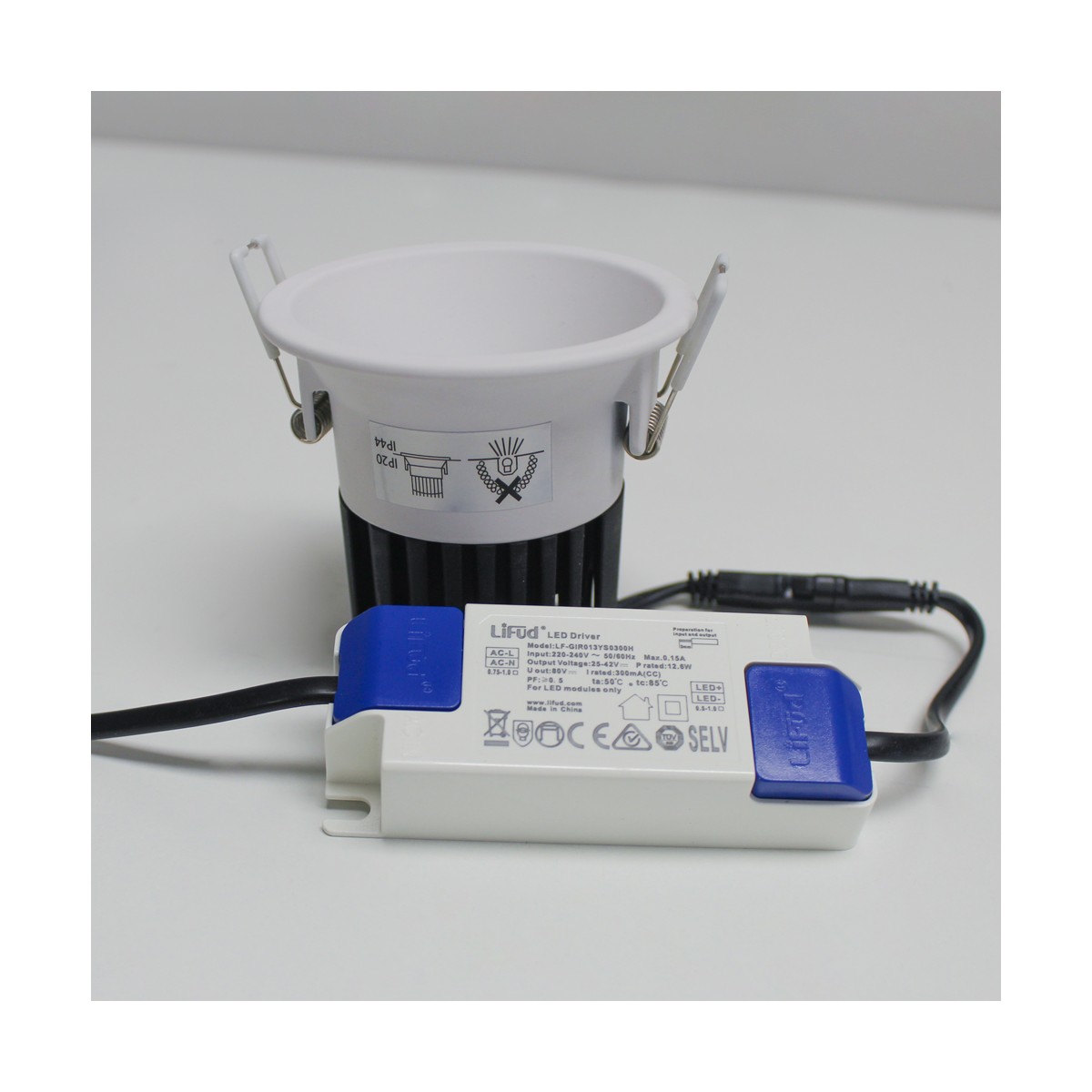

LED COB 12W replaceable spot module with driver from Ángel Aparicio Spain. It offers a power of 12W and an intensity of 960 lumens, being possible to select it with warm, neutral or cold colour temperature. These modules with LED technology are designed to be placed in recessed ceiling fixtures as a replacement for a GU10 LED bulb. With this LED module you can solve specific lighting needs that a recessed downlight with a bulb allows. Replaceable module with LED technology for lighting projects in hotels, buildings and businesses. You can select the module with different beam opening angles.
