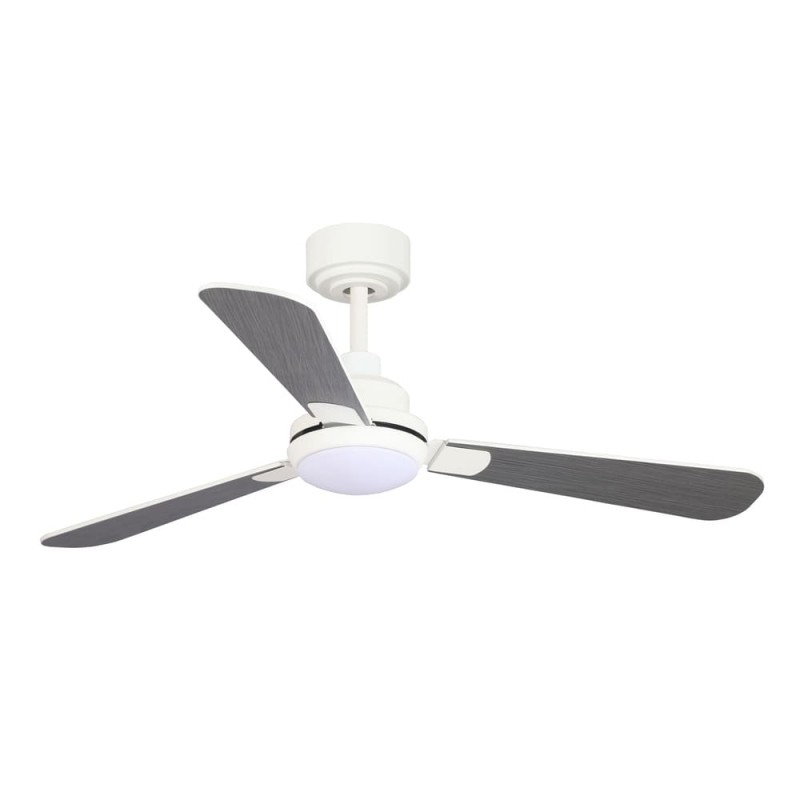

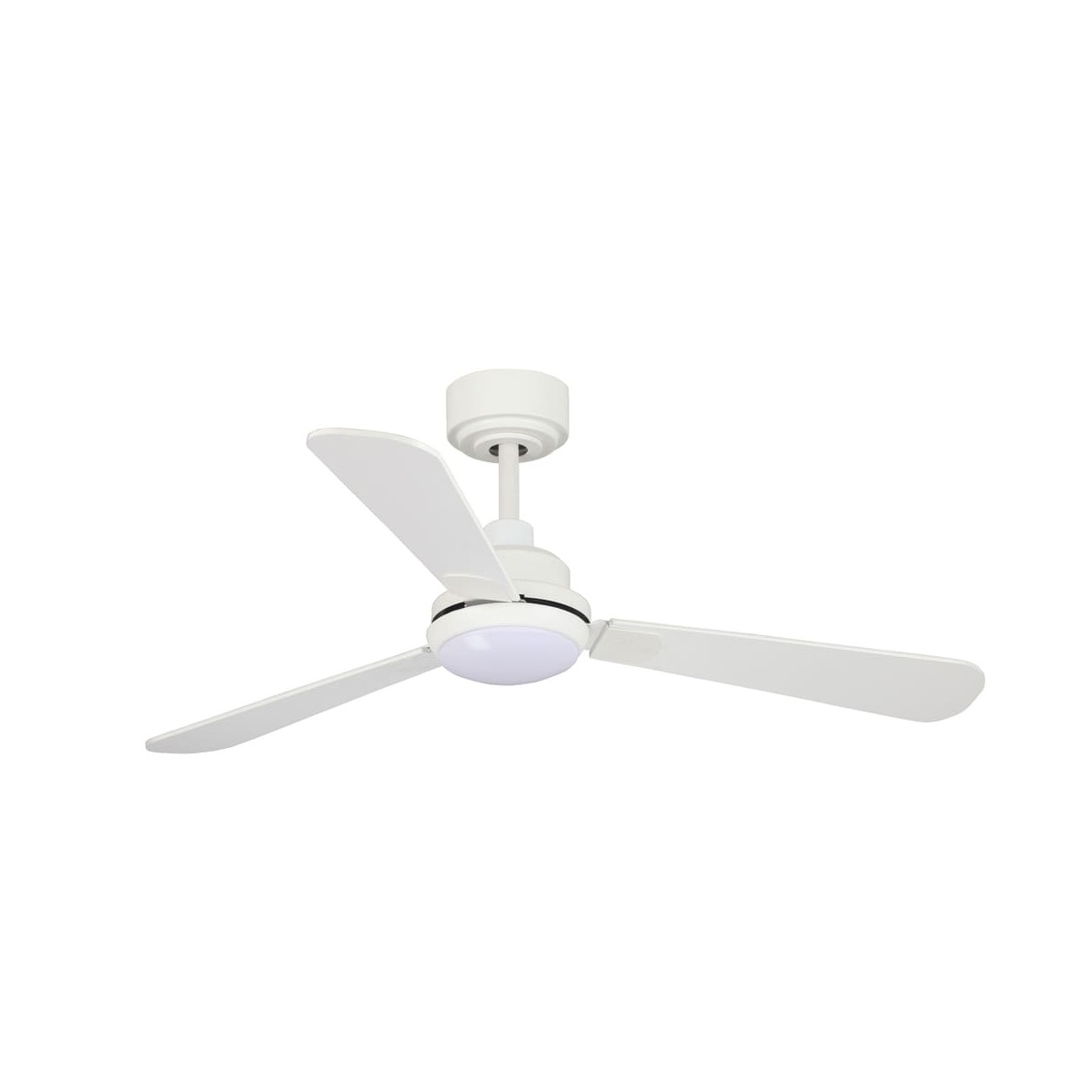

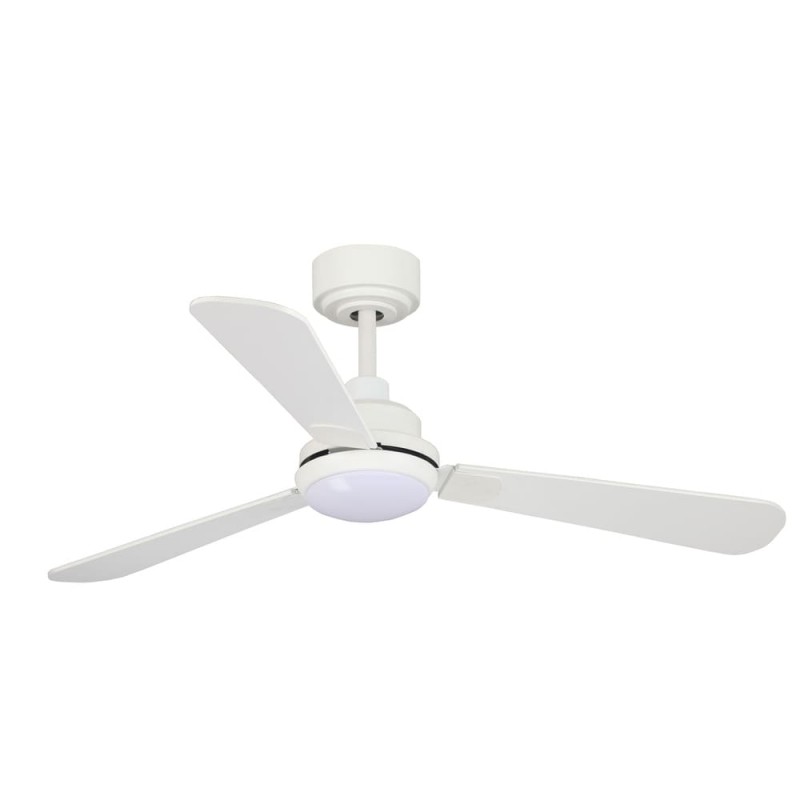

Noe LED DC Ceiling Fan 3CCT 18W 1500Lm Reversible Blades Ash/White
Ref. 85-303-18-111
85-303-18-111
210
Data sheet
- Weight (Kg)
- 5.5
- Material
- Steel
- Finish
- White
White + Grey - Diffuser Material
- Acrylic
- IP Rating
- 20
- Power (W)
- 18
- Brightness (Lm)
- 1500
- Light
- CCT
- Light temperature (K)
- 3 CCT (3000 / 4000 / 6000)
- Voltage (V)
- 220-240
- Frequency (Hz)
- 50
- IEC protection
- Class I
- Material blades
- Plywood
- Blades
- 3
- Motor
- DC
- Speeds
- 5
- Engine power (W)
- 3 / 5.7 / 8.7 / 12.3 / 17.6
- RPM
- 112 / 146 / 180 / 215 / 240
- Airflow m³/hr
- 4658 / 5369 / 6059 / 6845 / 7533
- Sound decibels (DB)
- 30 / 35 / 38 / 42 / 50
- Timer
- 1-2-4-8 h
- Room size
- 13 - 20 m²
- Suitable for sloping ceiling
- Max 15°

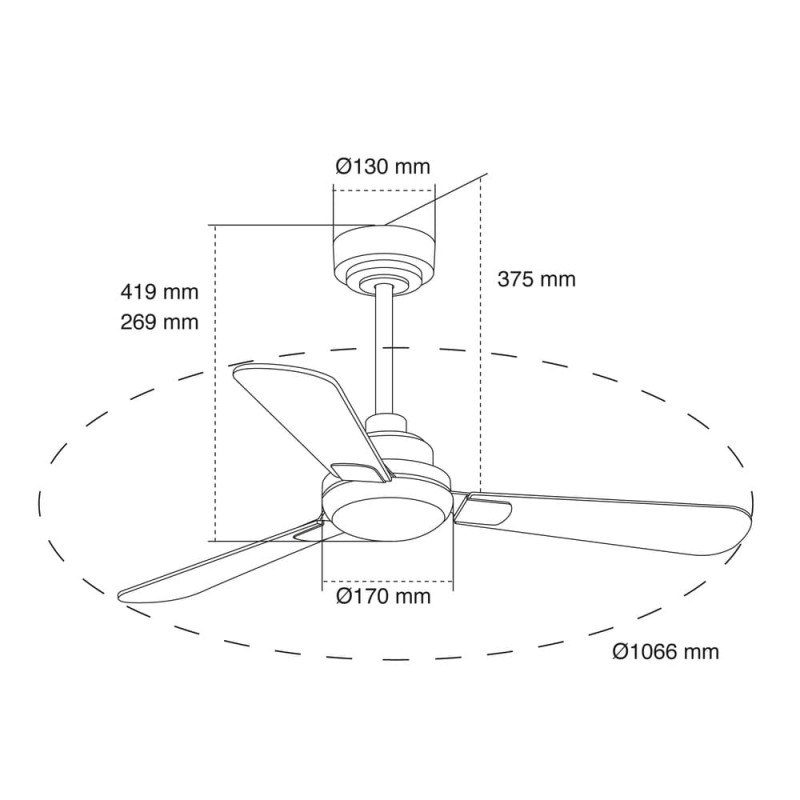

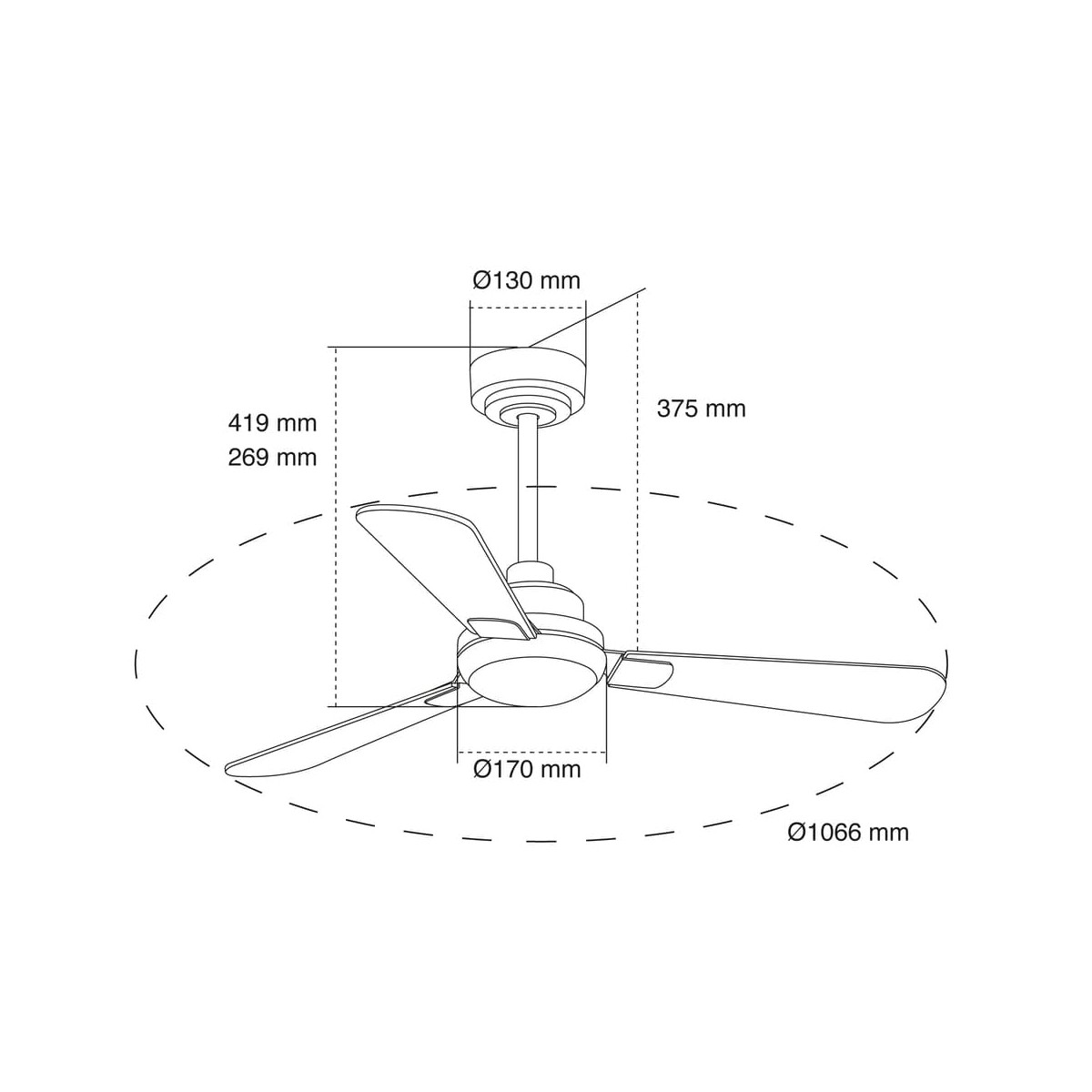

- Fan diameter
- 106 cm
- Canopy size
- 13 cm
- Minimum height of the fan
- 269 mm
- Maximum Height of the fan
- 419 mm
- Summer / Winter function
- Yes
- Number of Downrods
- 2 Downrods
- Reversible blades
- Yes

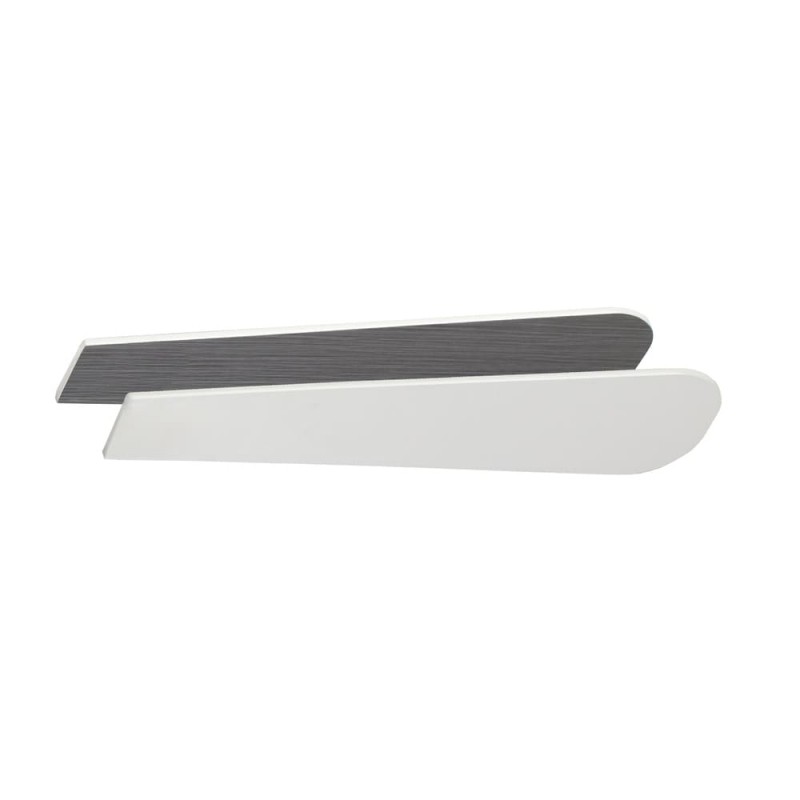

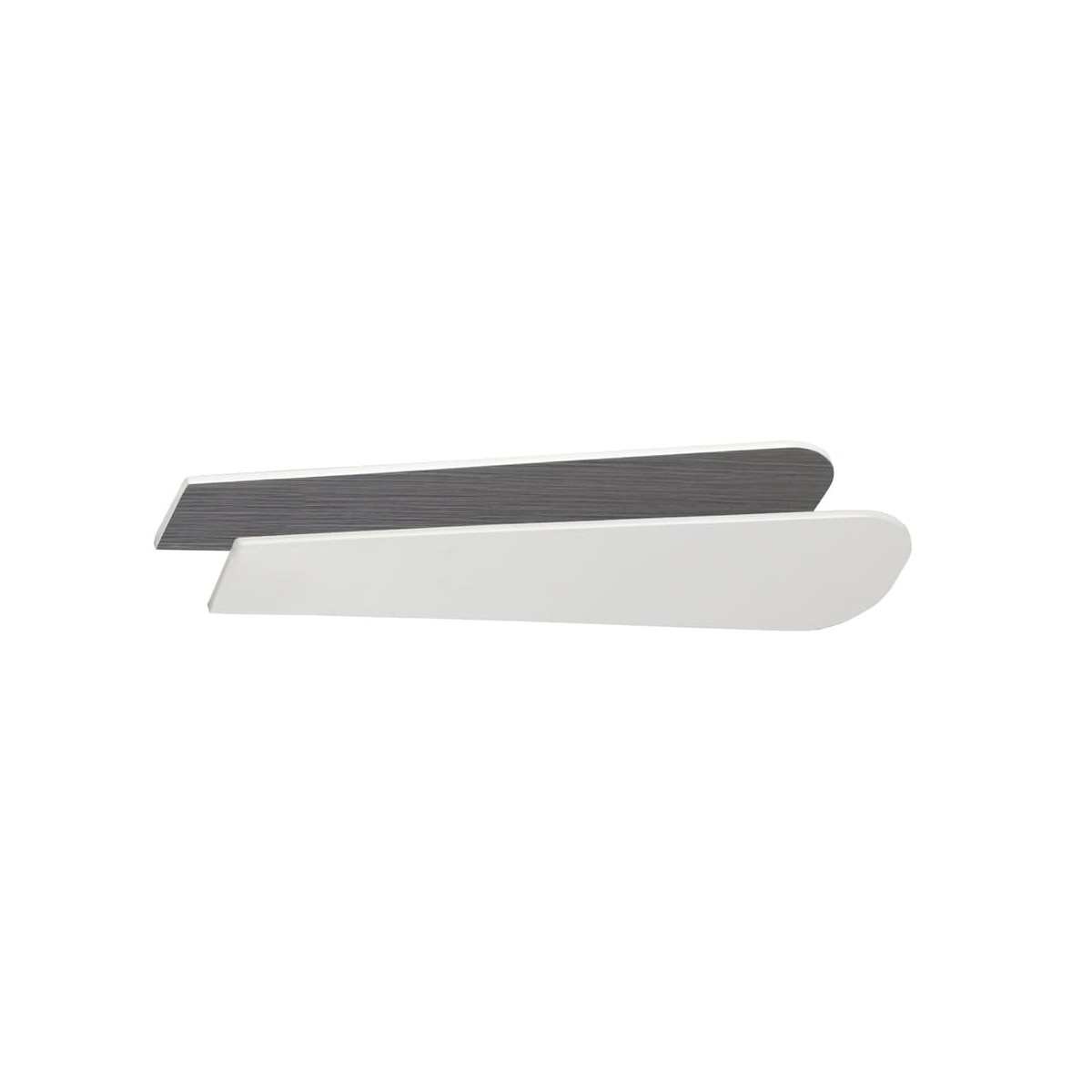

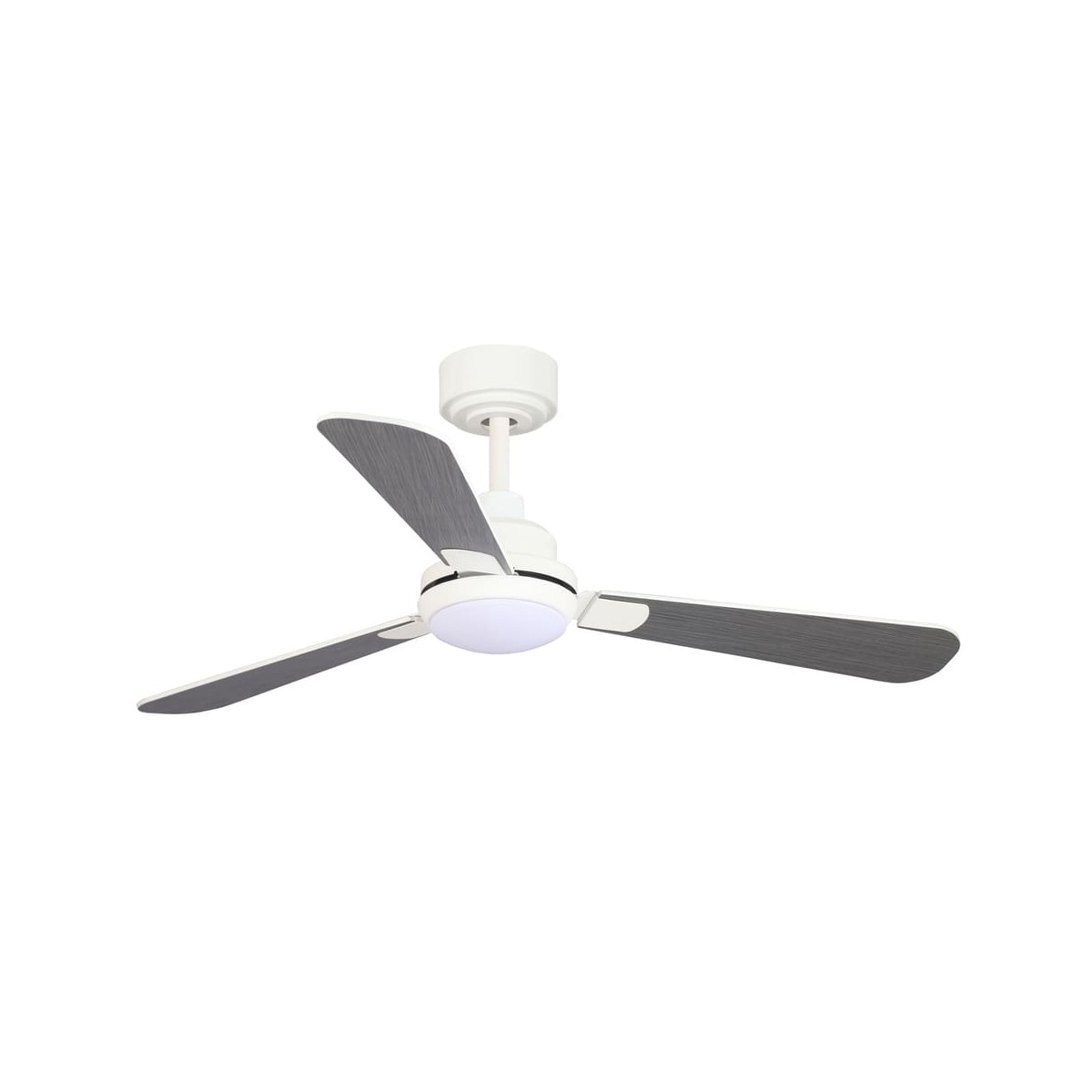

Fan with 5 speeds DC motor. Its main decorative advantage is its reversible blades, which allow you to choose between ash or white. You can also regulate its height, as it incorporates two chalks. It can be installed on sloping ceilings of up to 15º.

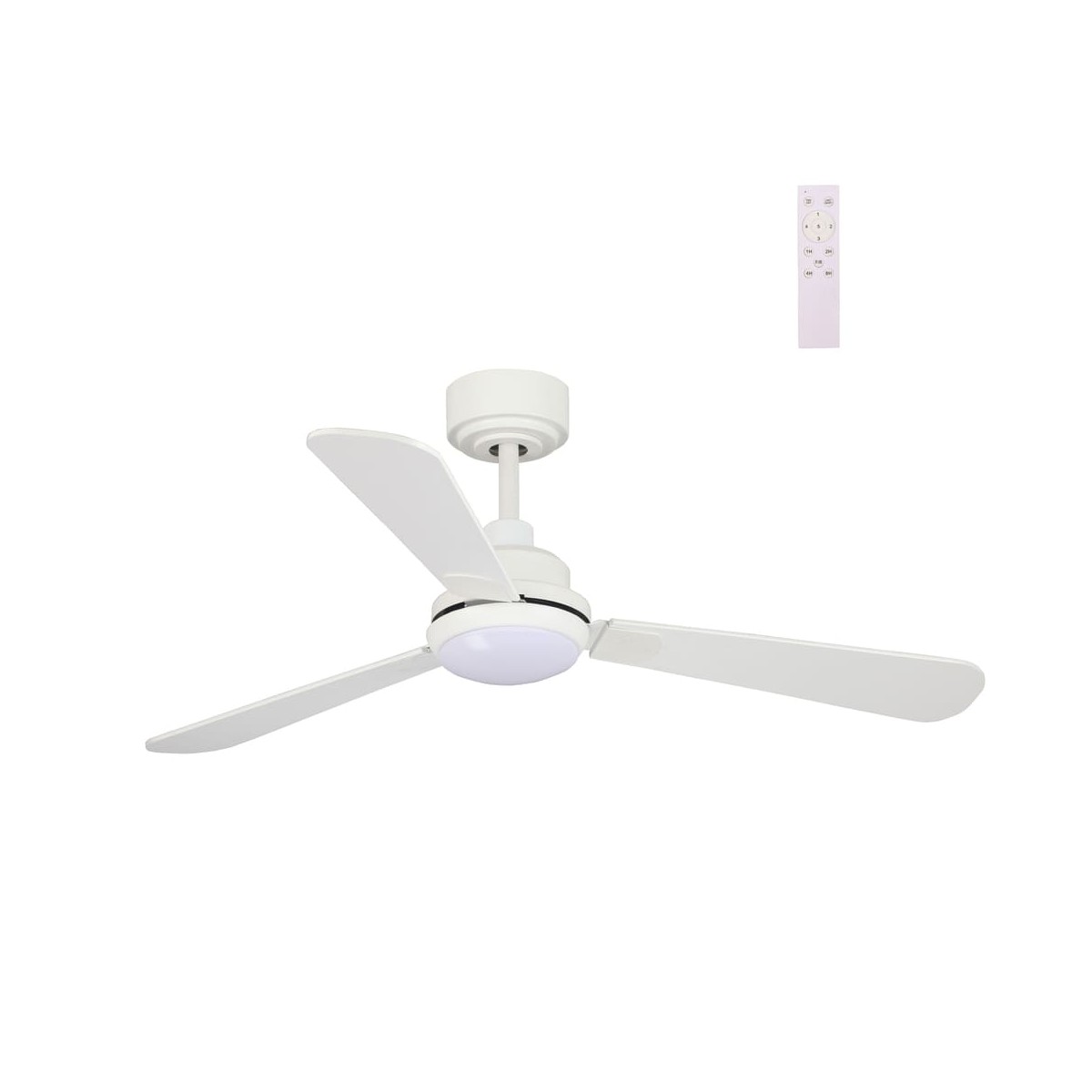

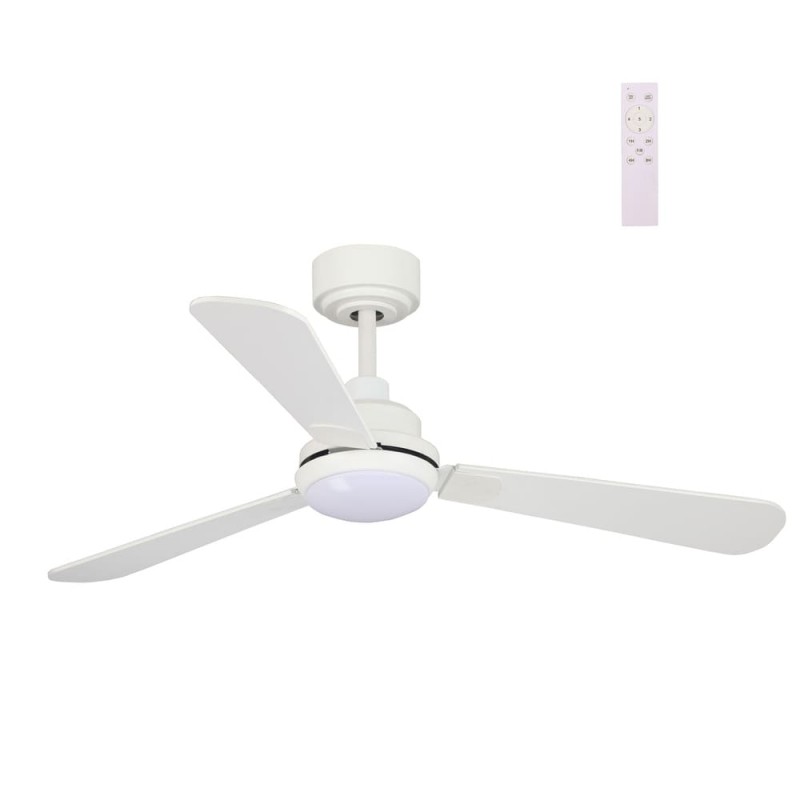

Thanks to its control you can adjust the light temperature (warm / neutral / cold). In addition to this function, the control includes timer and inverse function (Summer - Winter).
