BigBen LED Ceiling Fan 20W 2000Lm CCT Dim
Ref. 85-960-18-106
85-960-18-106
10
Data sheet
- Brand
- CristalRecord
- Lamp type
- Fan

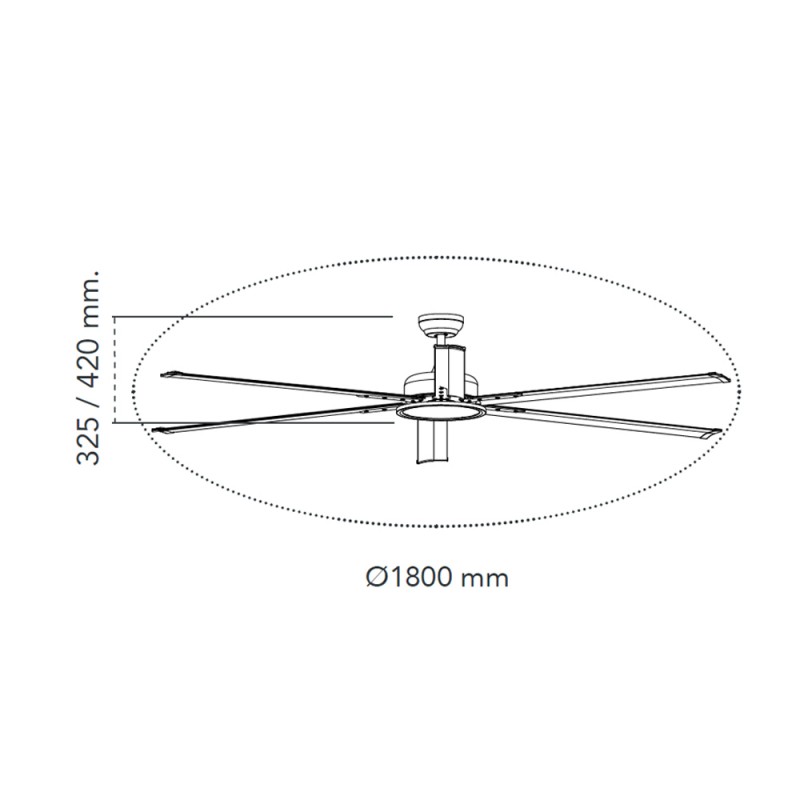

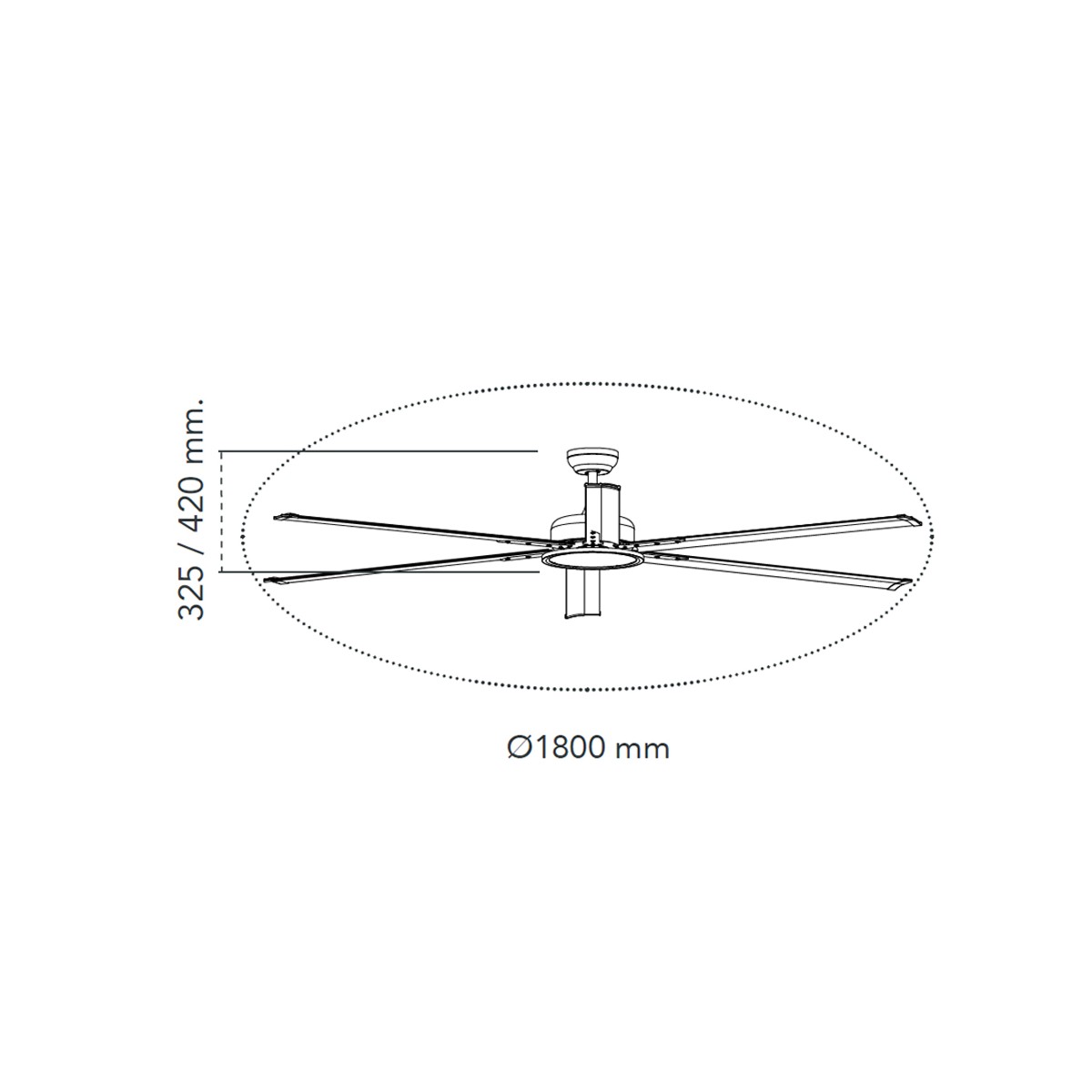

- Height (mm)
- 325 - 420
- Diameter (mm)
- 1800
- Weight (Kg)
- 12.59
- Material
- Steel
- Finish
- Aluminium
- Diffuser Material
- PMMA
- Diffuser Finish
- Opal
- IP Rating
- 20
- Power (W)
- 20
- Brightness (Lm)
- 2000
- Light temperature (K)
- 3 CCT (3000 / 4000 / 6000)
- Chromatic reprodiction index (CRI)
- 80
- Dimmable
- Yes
- Voltage (V)
- 220-240
- IEC protection
- Class I
- Material blades
- Aluminium
- Blades
- 6
- Switch-on memory
- Yes
- Motor
- DC
- Speeds
- 6
- Engine power (W)
- 8.2 / 9.9 / 14.2 / 20.2 / 28.5 / 39.3
- RPM
- 47 / 55 / 64 / 76 / 84 / 96
- Airflow m³/hr
- 5525 / 6695 / 7865 / 8890 / 9880 / 11115
- Sound decibels (DB)
- 26.5 / 28.3 / 30.4 / 32.8 / 35.7 / 39.6
- Timer
- 30' - 2 h.

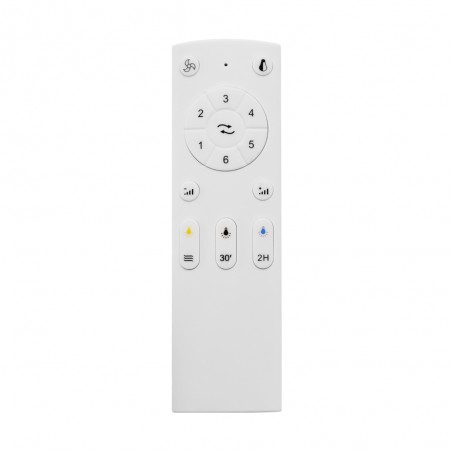

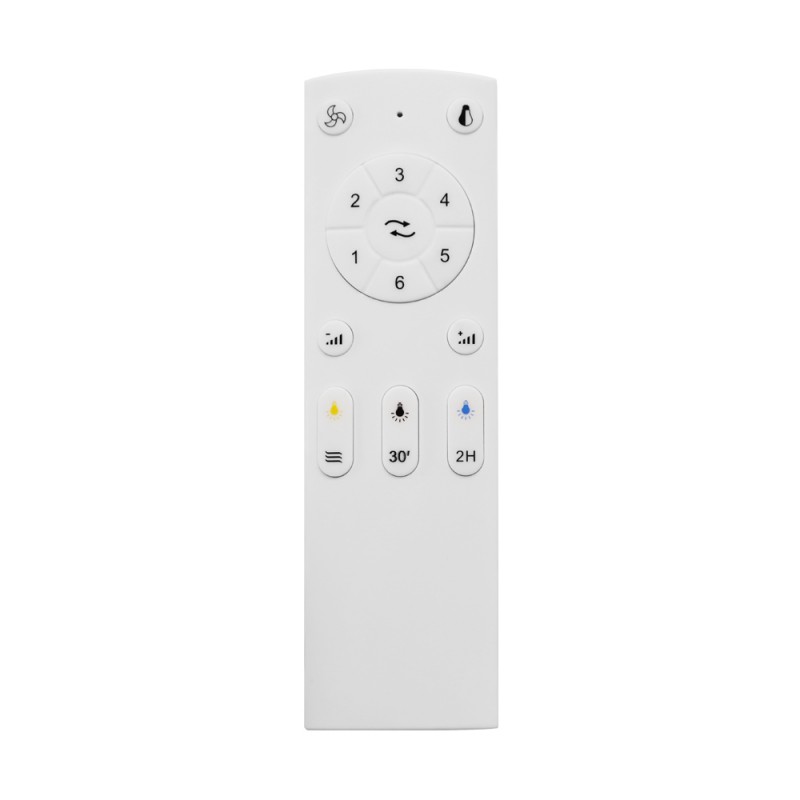

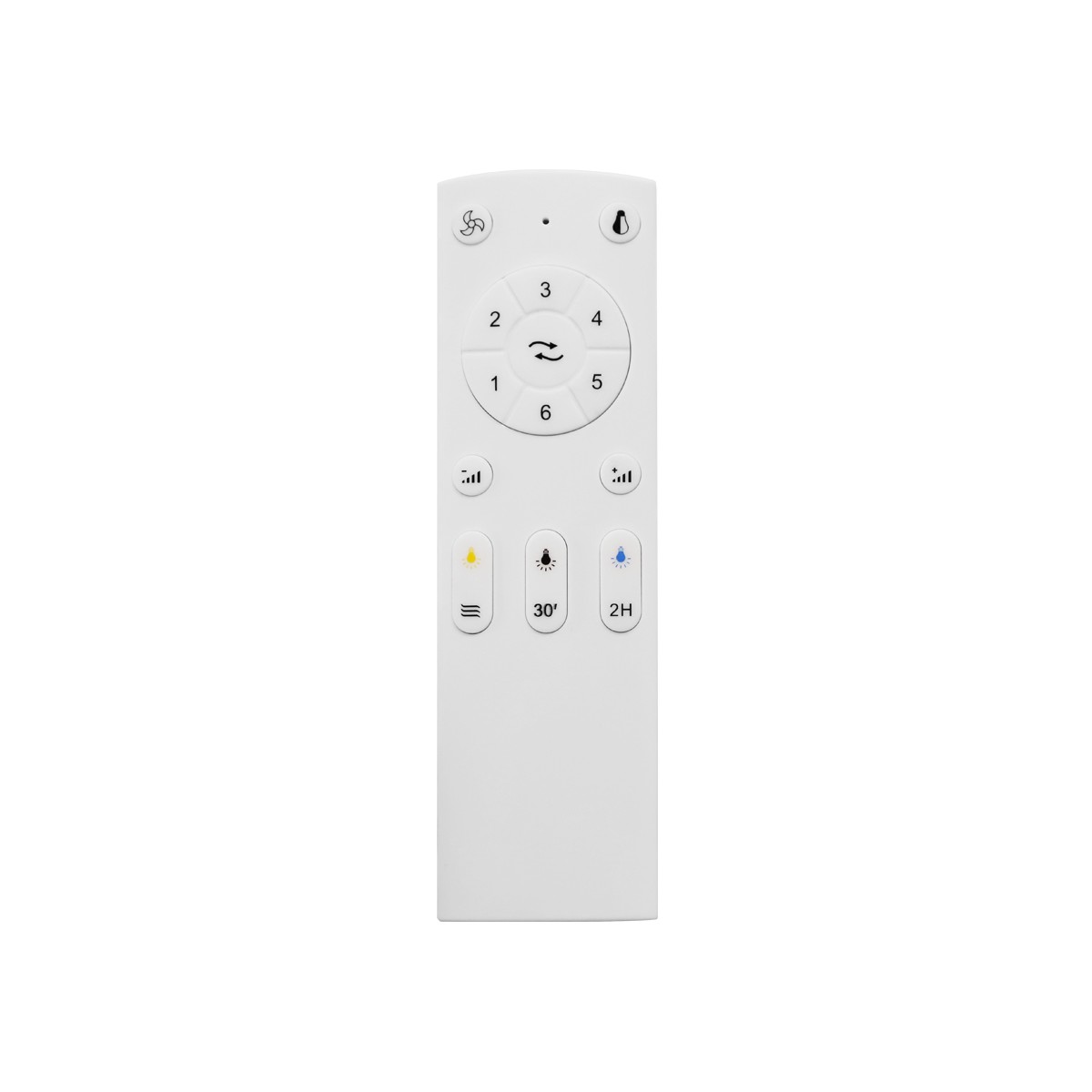

- Remote control
- Included
- Room size
- more than 20 m²
- Suitable for sloping ceiling
- Max. 10º
- Summer / Winter function
- Yes
- Number of Downrods
- 2 Downrods

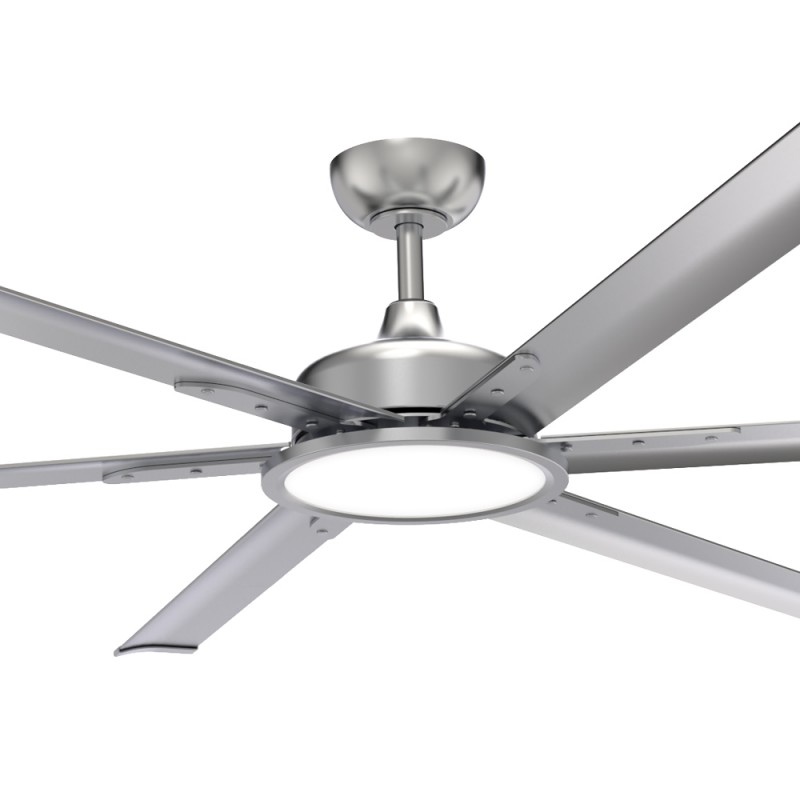

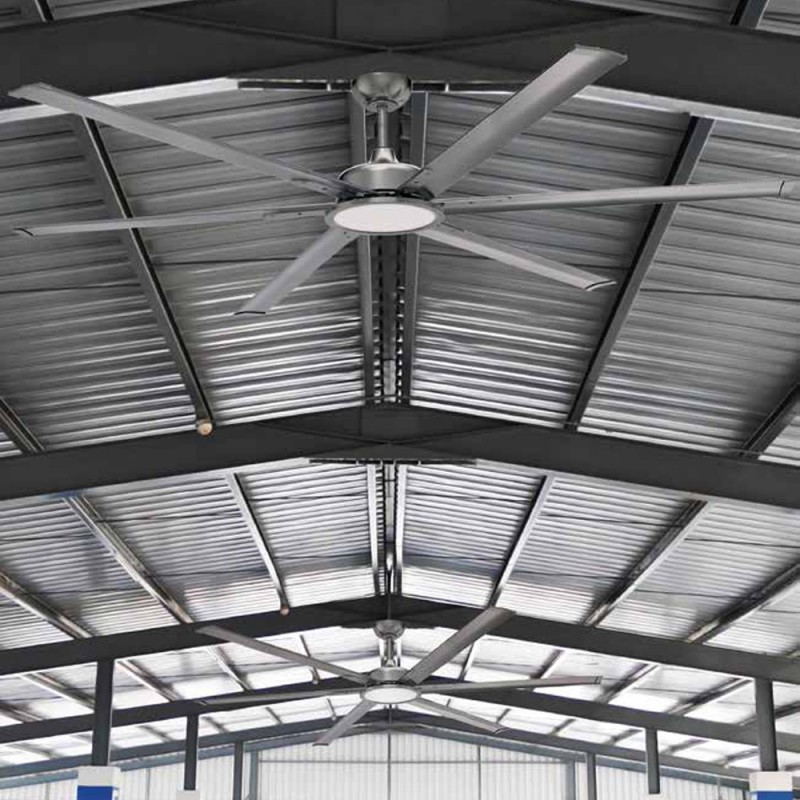

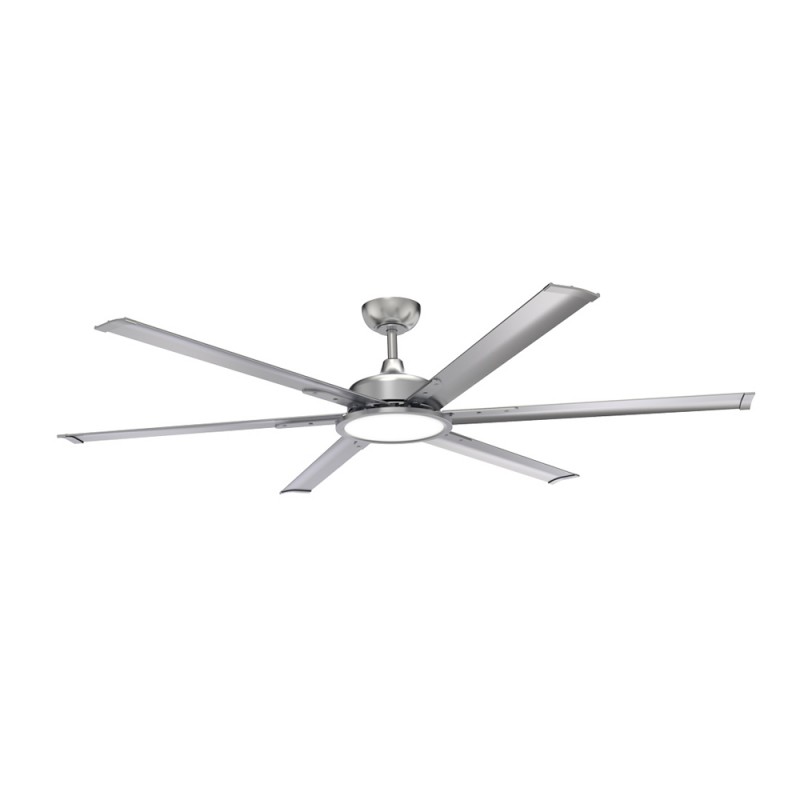

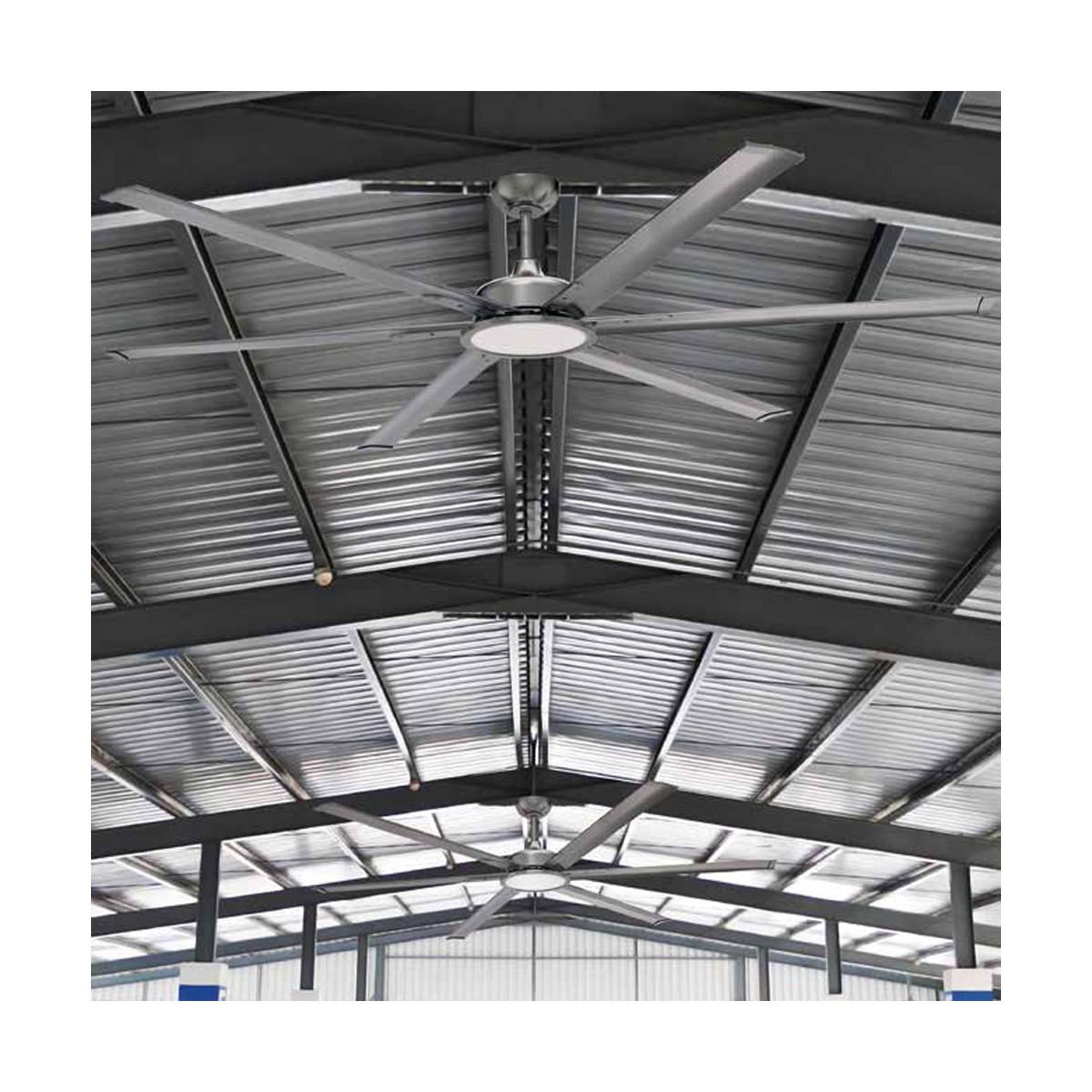

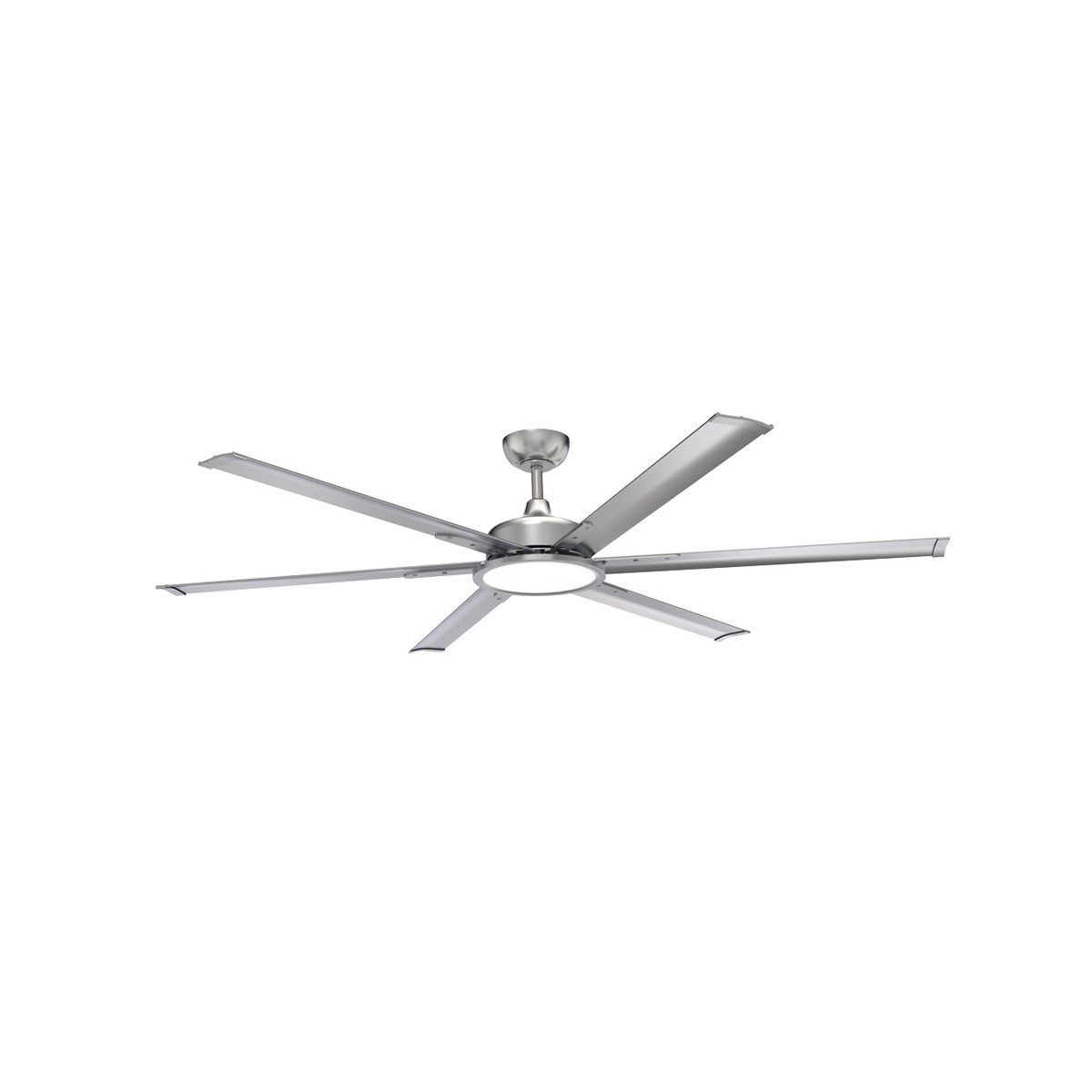

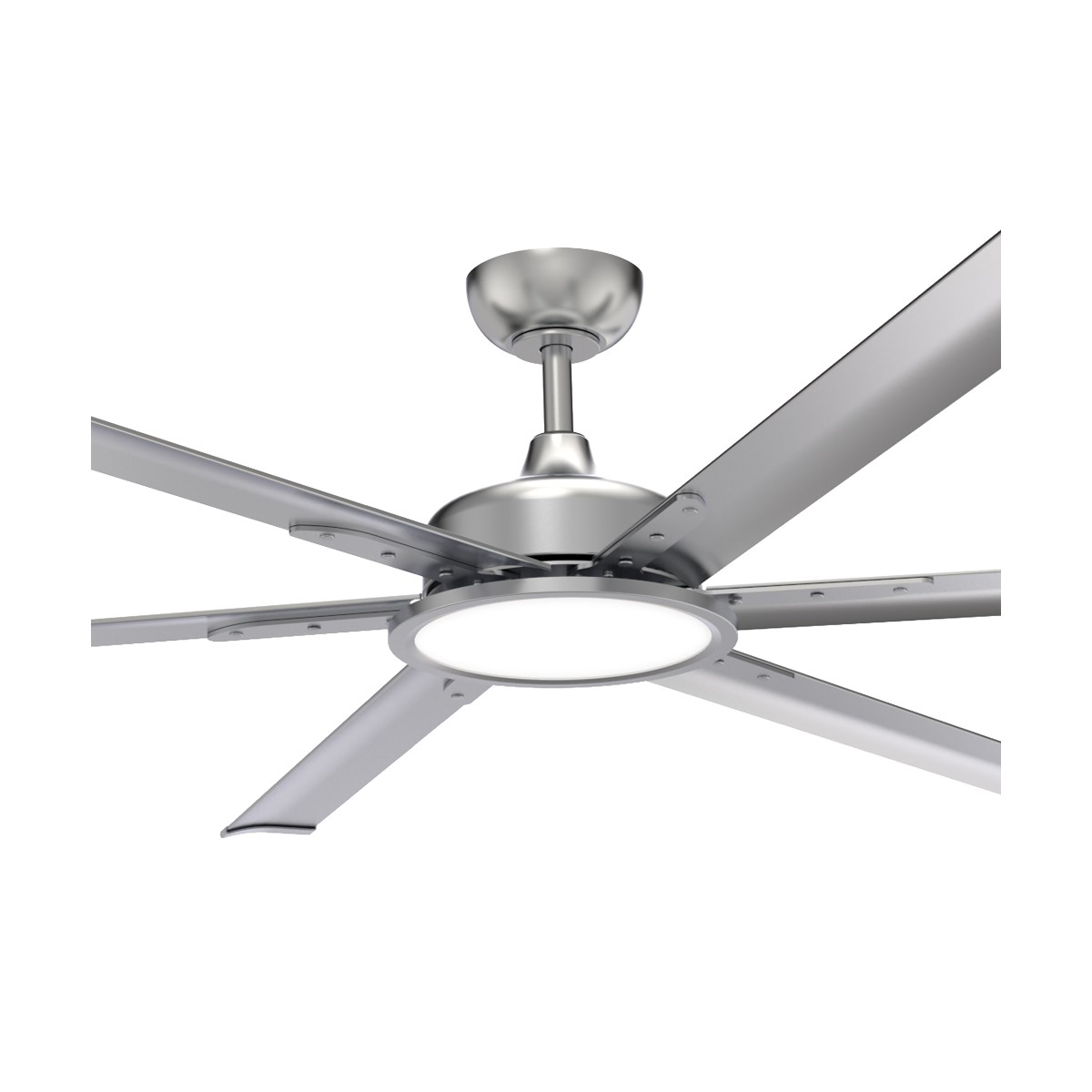

Bigben large-size ceiling fan. Ceiling fan with six blades and a diameter of 180 centimetres. Designed for installation in industrial premises and large indoor spaces. Steel motor, aluminium blades and PMMA diffuser. Remote control to control the fan and the lighting. DC motor.
*Option of purchasing without lighting (ref: 85-960-disco).
